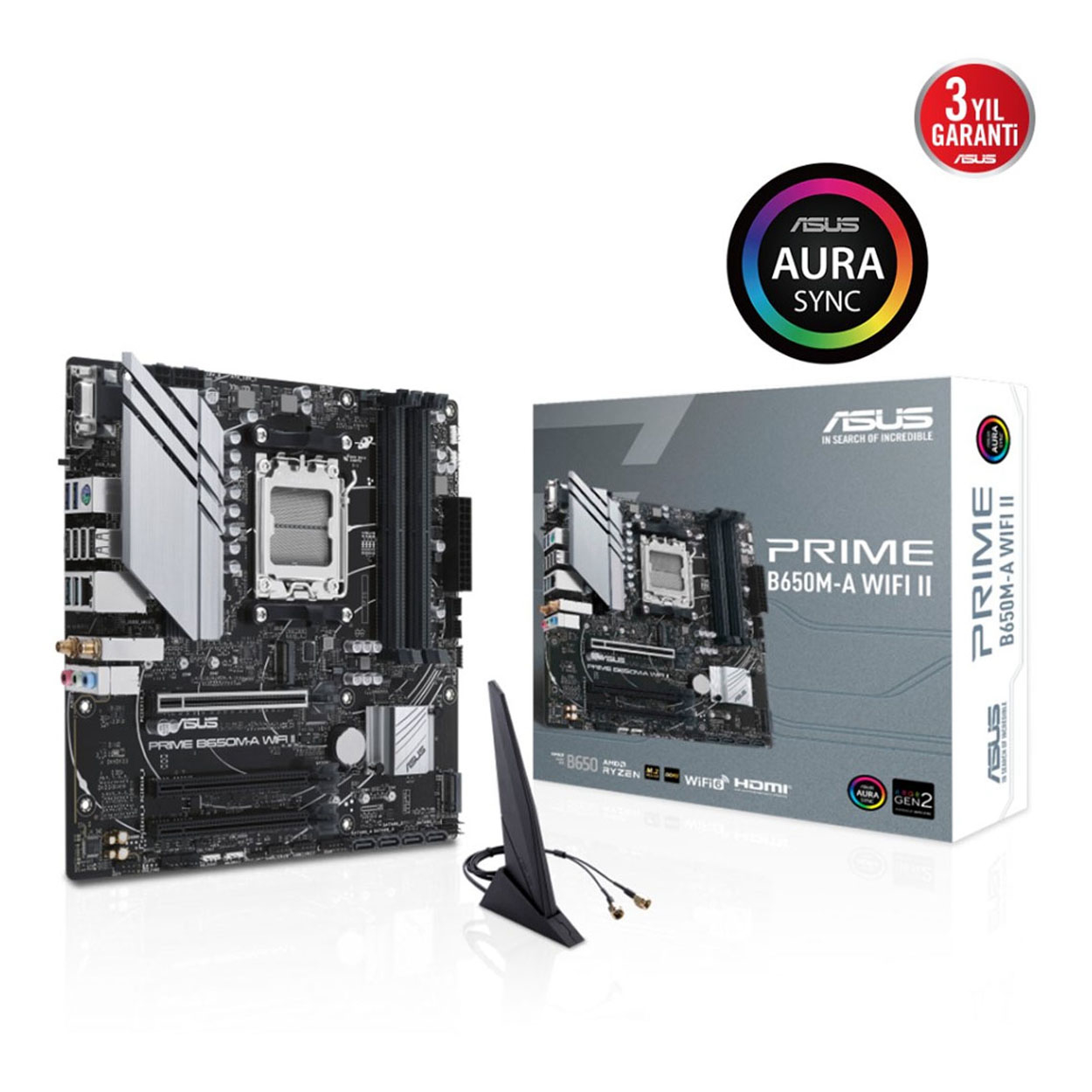

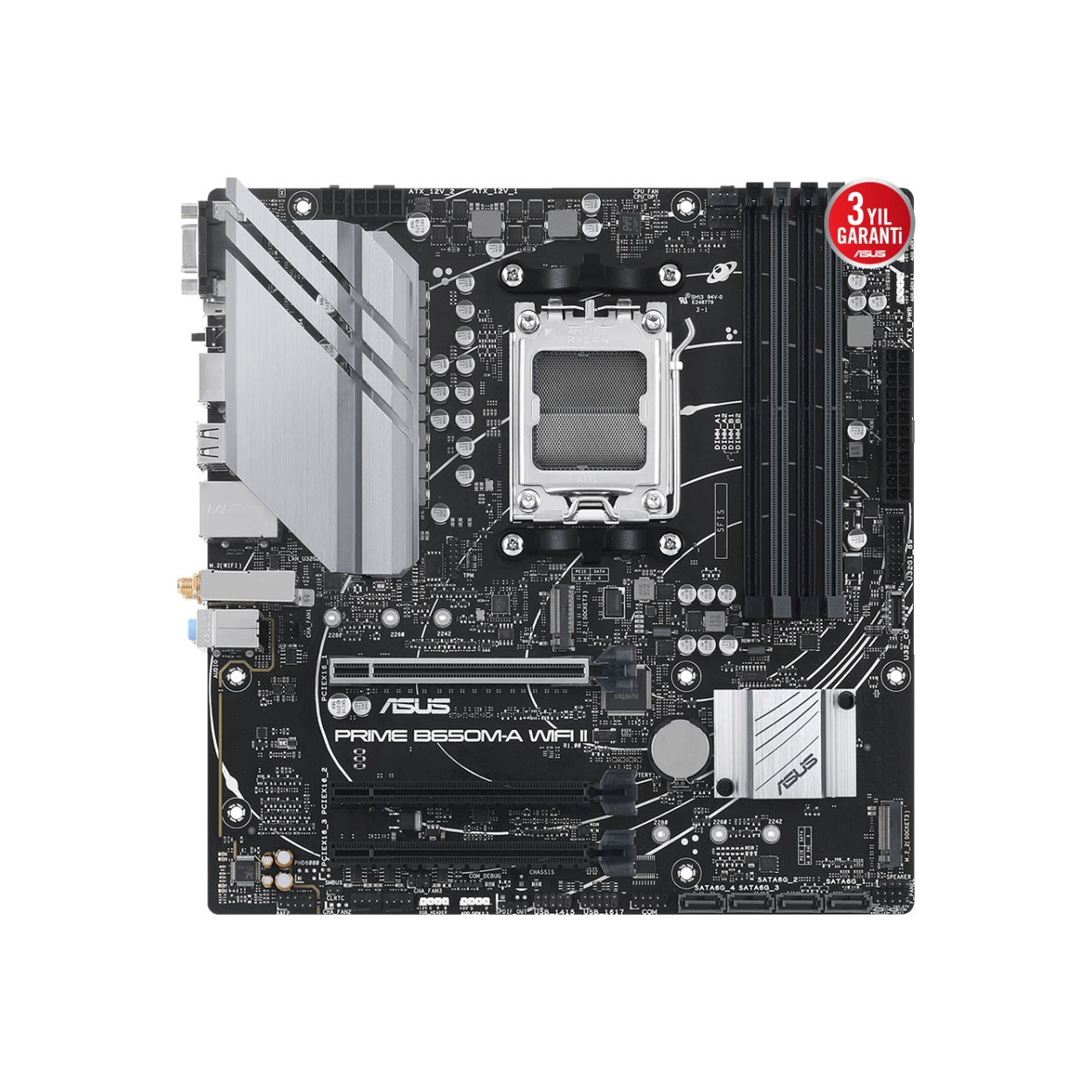

Asus PRIME B650M-A WIFI II B650 DDR5 M.2 DP/HDMI/VGA PCI 4.0 AM5 Anakart
| Kategori | AMD Anakart | |
| Üretici Kodu | 90MB1EG0-M0EAY0 | |
| İşlemci Soketi | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. | |
| Soket Tipi | AM5 | |
| Bellek Yuvası | 4x DIMM | |
| Bellek Desteği | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II * Supported memo | |
| DDR | DDR 5 | |
| Maksimum Bellek Desteği | 128GB | |
| Depolama Portları | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD B650 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x S | |
| Tümleşik Vga | Var | |
| Tümleşik Ses | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB laye | |
| Yonga Seti | AMD B650 Chipset | |
| Tümleşik Ağ | 1 x Realtek 2.5Gb Ethernet | |

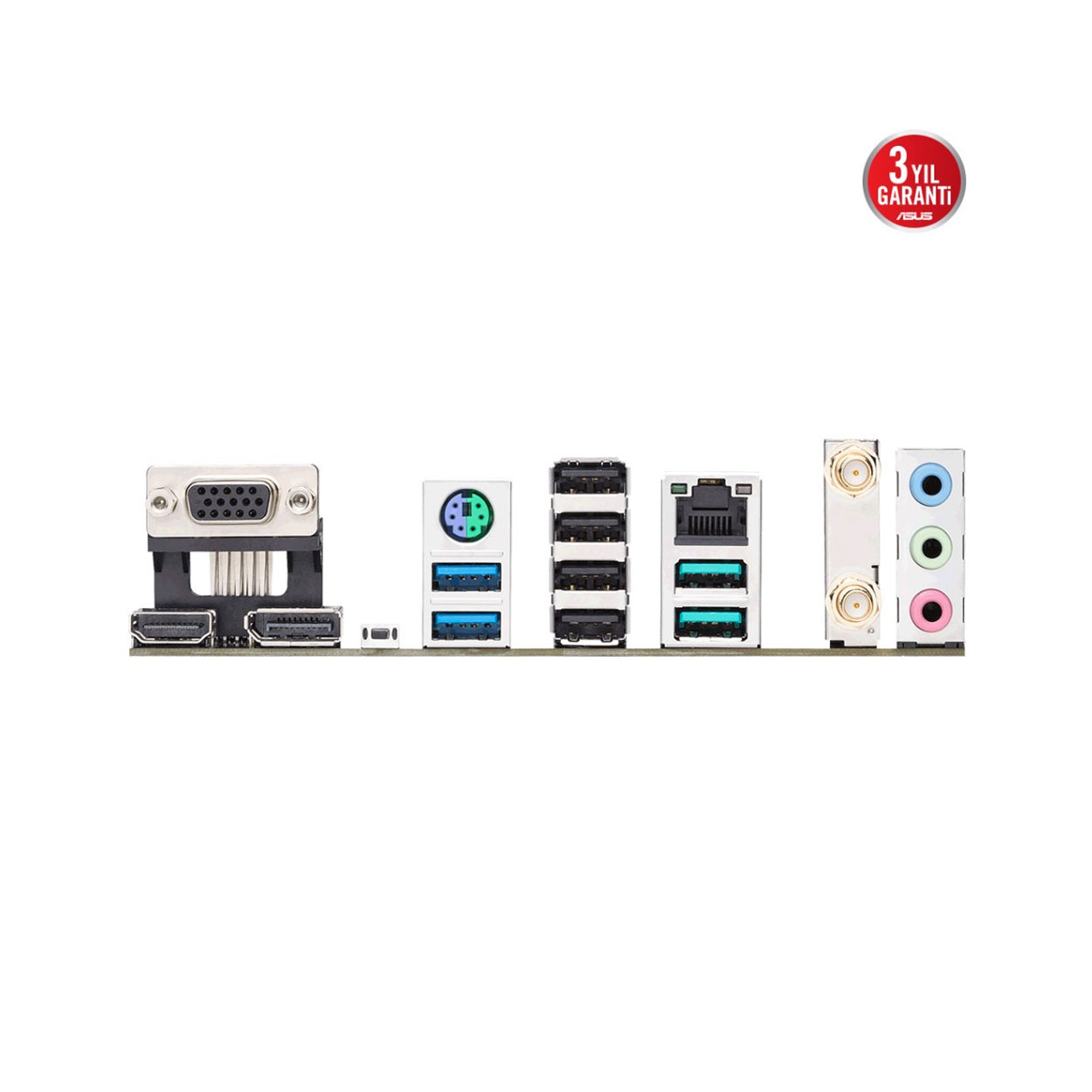

| Arka Bağlantılar | 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x PS/2 Keybo | |
| Genişleme Yuvası | AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD B650 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To e | |
| Dahili Bağlantılar | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 | |
| İşletim Sistemi Desteği | Windows® 11, Windows® 10 64-bit | |
| Form Yapısı | Micro ATX | |
| Boyutlar | 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) | |
| Model Link | https://www.asus.com/motherboards-components/motherboards/prime/prime-b650m-a-wifi-ii/techspec/ |
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|
