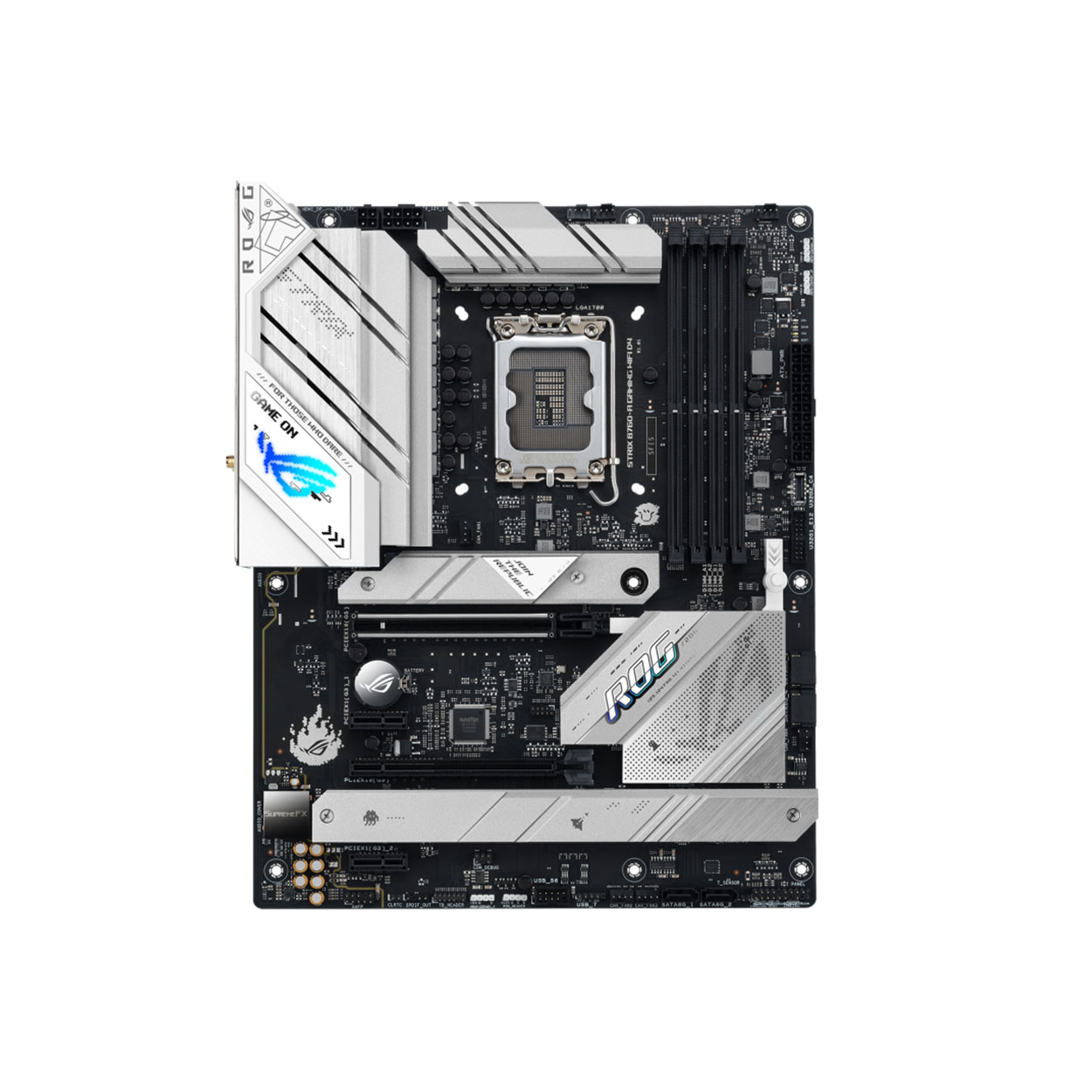

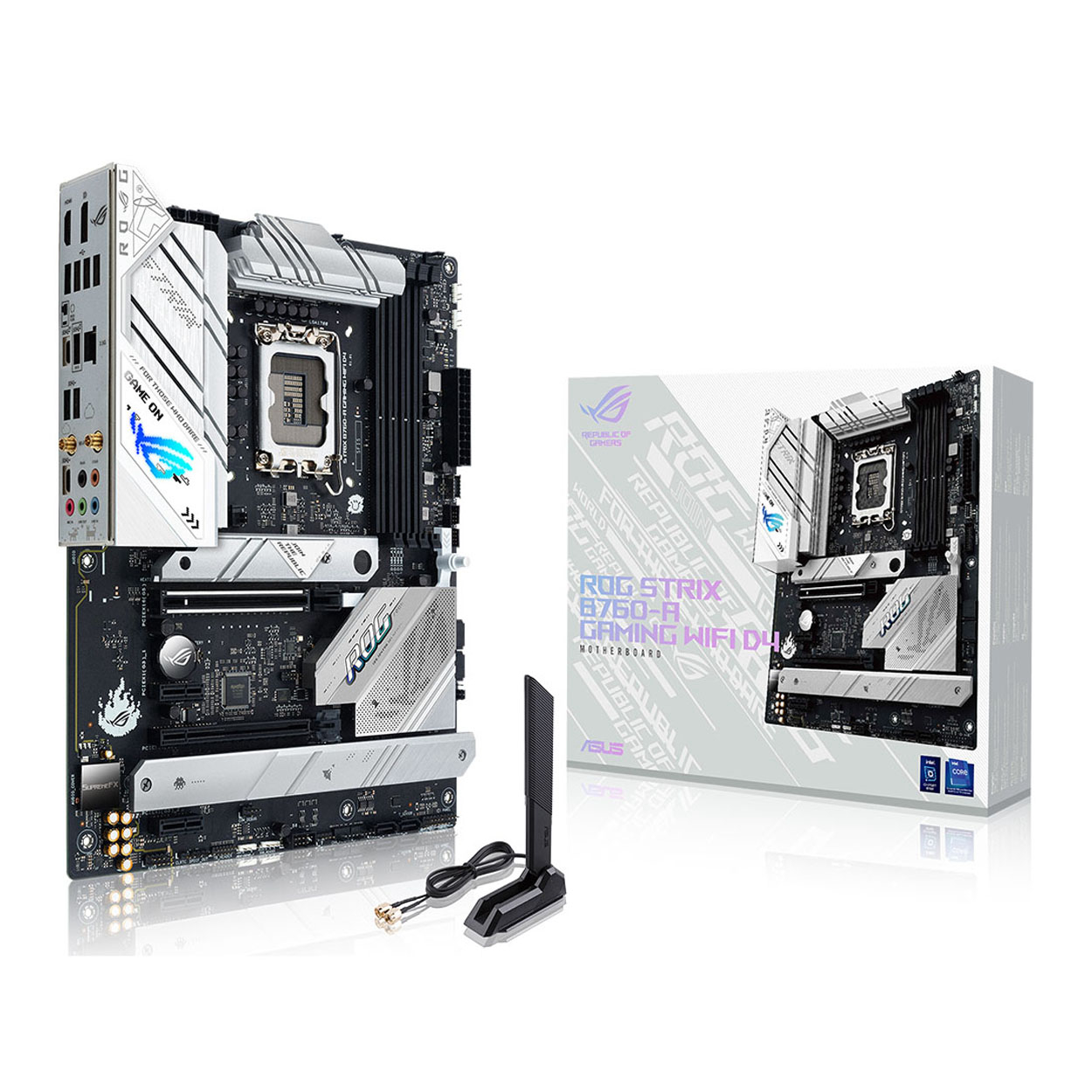

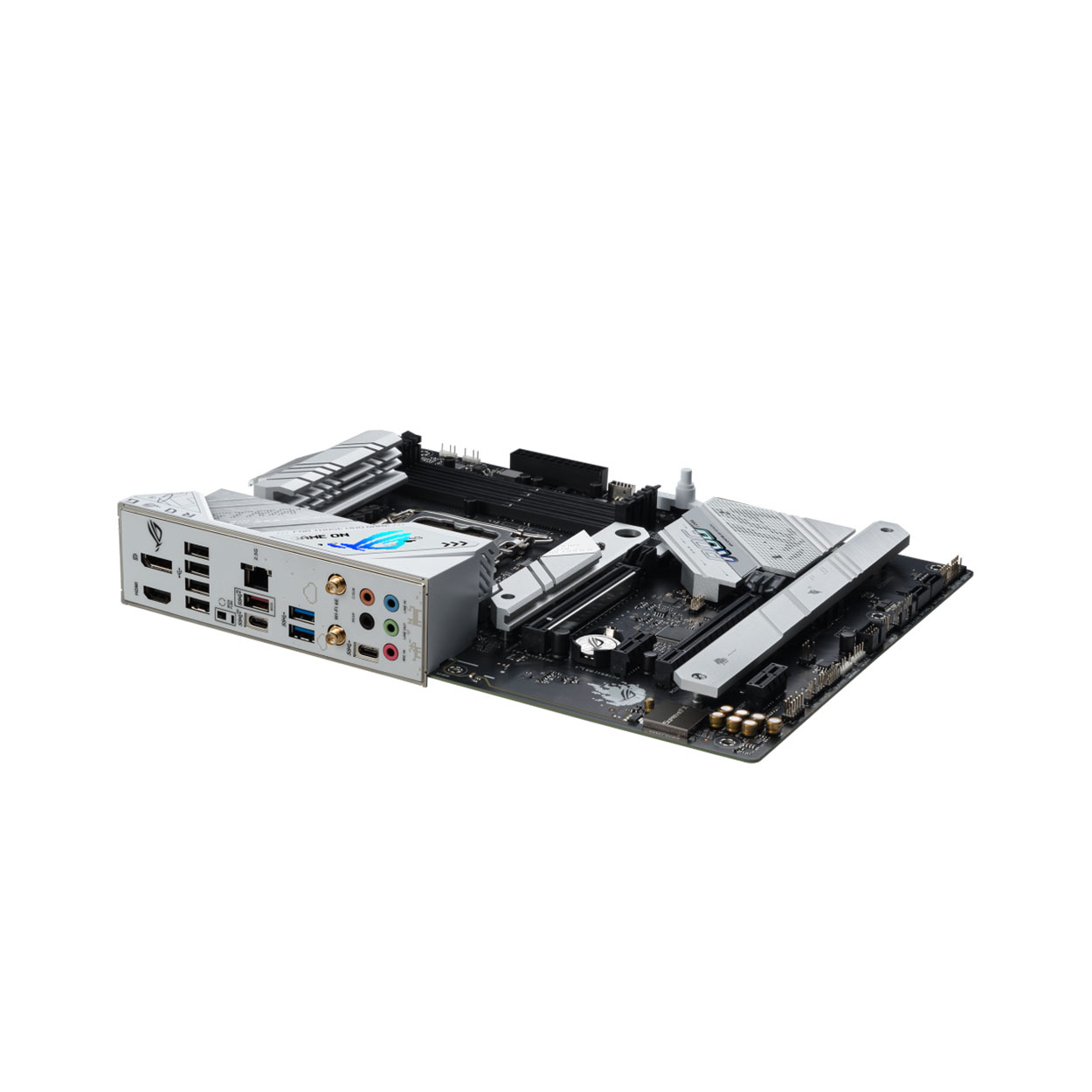

Asus ROG STRIX B760-A GAMING WIFI D4 B760 DDR4 M.2 DP/HDMI PCI 5.0 1700p Anakart
| Kategori | Intel Anakart | |
| Üretici Kodu | Asus ROG STRIX B760-A GAMING WIFI D4 | |
| İşlemci Soketi |
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list |
|
| Soket Tipi | 1700 Pin | |
| Bellek Yuvası | 4x DIMM | |
| Bellek Desteği |
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600 (OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC) /3600(OC)/3466(OC)/3400(OC)/3333(OC)/320 0/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports |
|
| DDR | DDR 4 | |
| Maksimum Bellek Desteği | 128GB | |
| Depolama Portları |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M. |
|
| Tümleşik Vga | Var | |
| Tümleşik Ses |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 |
|
| Yonga Seti | Intel B760 Chipset | |
| Tümleşik Ağ |
1 x Intel® 2.5Gb Ethernet ASUS LANGuard // TUF LANGuard |
|
| Arka Bağlantılar |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio j |
|
| Genişleme Yuvası |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M. |
|
| Dahili Bağlantılar |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage rel |
|
| İşletim Sistemi Desteği | Windows® 11, Windows® 10 64-bit | |
| Form Yapısı | ATX | |
| Boyutlar | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Model Link | https://rog.asus.com/motherboards/rog-strix/rog-strix-b760-a-gaming-wifi-d4-model/spec/ |
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|
