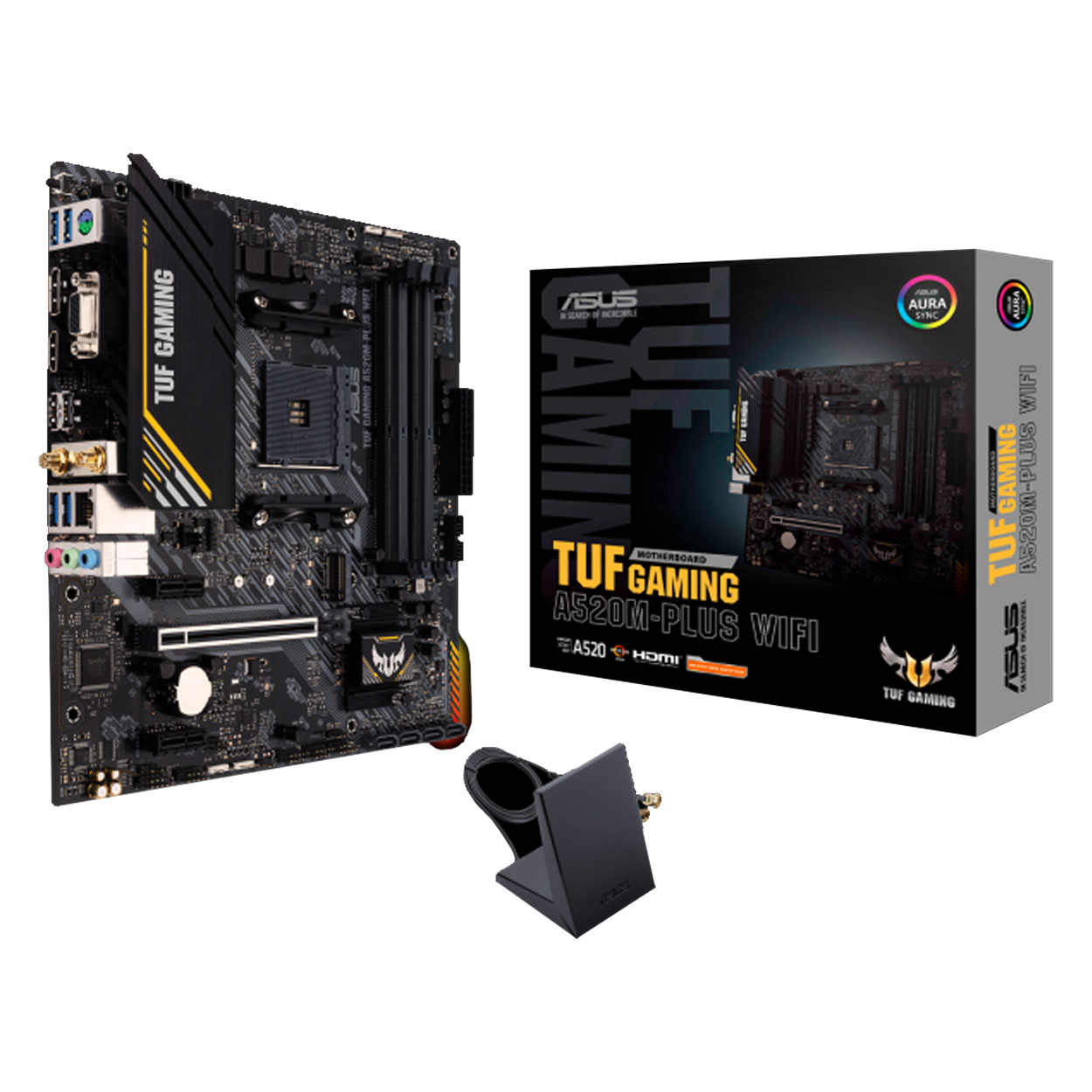

Asus TUF GAMING A520M-PLUS WIFI AMD A520 DDR4 USB3.2 DP/HDMI/VGA PCI3.0 AM4 Anak

Stok:

Üretici Kodu: 90MB17F0-M0EAY0

Kategori	AMD Anakart
Üretici Kodu	TUF GAMING A520M-PLUS WIFI
İşlemci Soketi	AMD Ryzen™ 5000 Serisi/ 5000 G-Serisi/ 4000-G Serisi/ 3000 Serisi Masaüstü İşlemciler
Soket Tipi	AM4
Bellek Yuvası	2x DIMM
Bellek Desteği	4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266 (OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC) /3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory*
DDR	DDR 4
Maksimum Bellek Desteği	128GB
Depolama Portları	1 x M.2 slot ve 4 x SATA 6Gb/s bağlantı noktasını destekler AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset 4 x SATA 6Gb/s ports Support
Tümleşik Vga	Var
Tümleşik Ses	ALC887/897 - Supports : Jack detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback"
Yonga Seti	AMD A520 Chipset
Tümleşik Ağ	Realtek Wi-Fi 5 8821CE 1x1 Wi-Fi 5 (802.11 a/b/g/n/ac) with MU-MIMO Supports dual frequency band 2.4/5GHz Supports channel bandwidth: HT20/HT40/HT80 Bluetooth v5.0
Arka Bağlantılar	Portları 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x D-Sub 1 x ASUS Wi-Fi Module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port
Genişleme Yuvası	1 x PCIe 3.0 x16 (x16 mod) AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots
Dahili Bağlantılar	Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header su
İşletim Sistemi Desteği	Windows 10 64bit Windows® 10 64-bit
Form Yapısı	Micro ATX
Boyutlar	24.4cm x 24.4cm
Model Link	https://www.asus.com/tr/motherboards-components/motherboards/tuf-gaming/tuf-gaming-a520m-plus-wifi/techspec/
