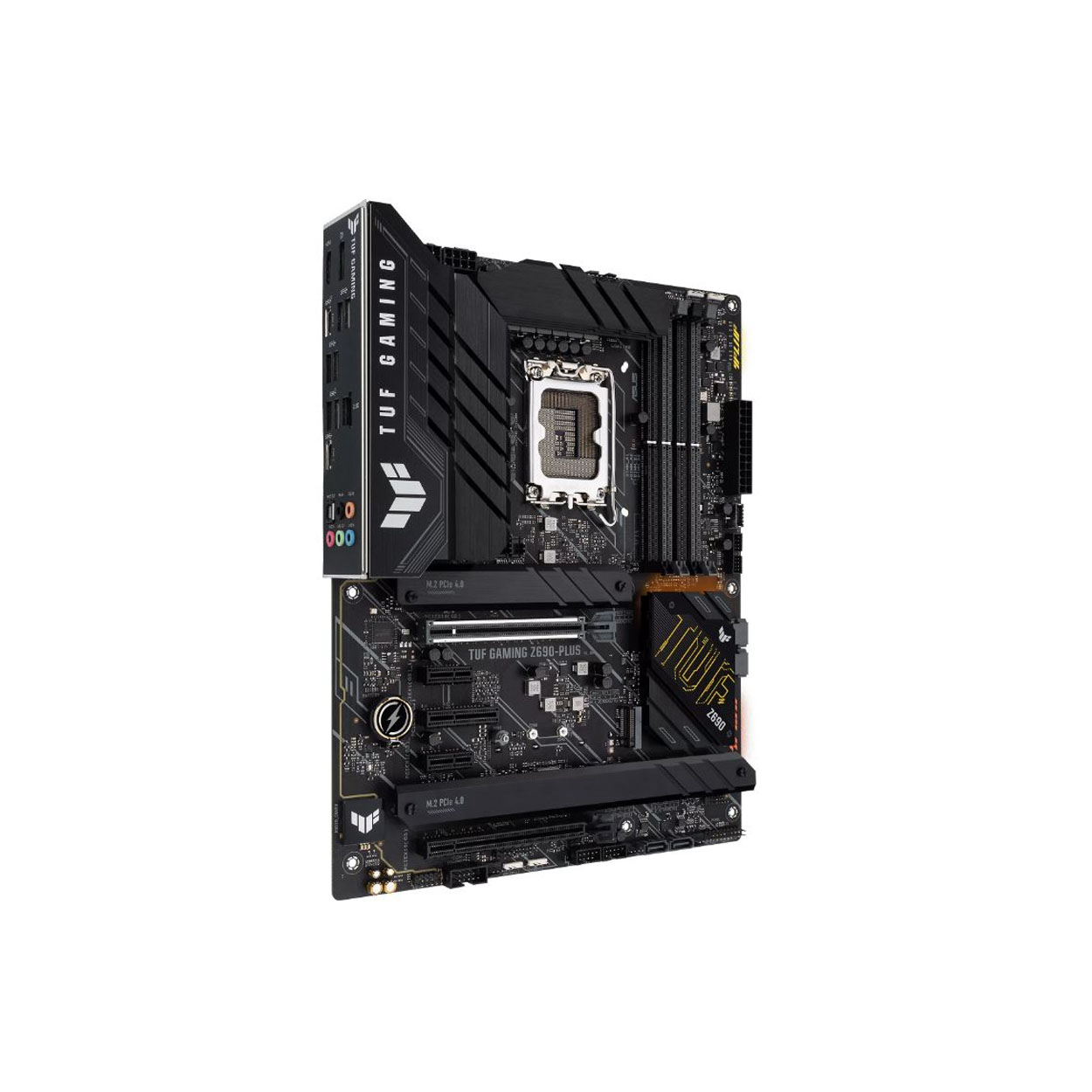

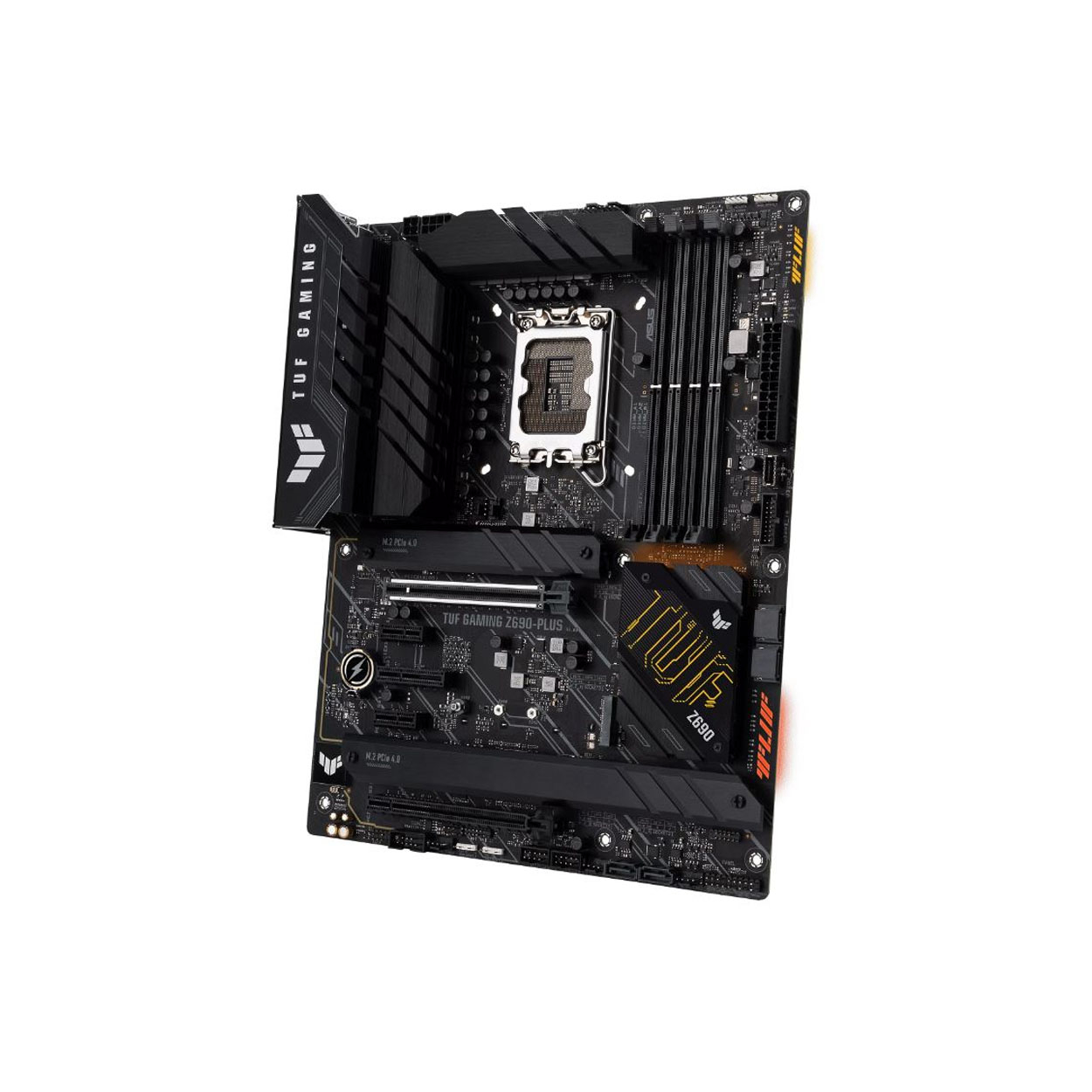

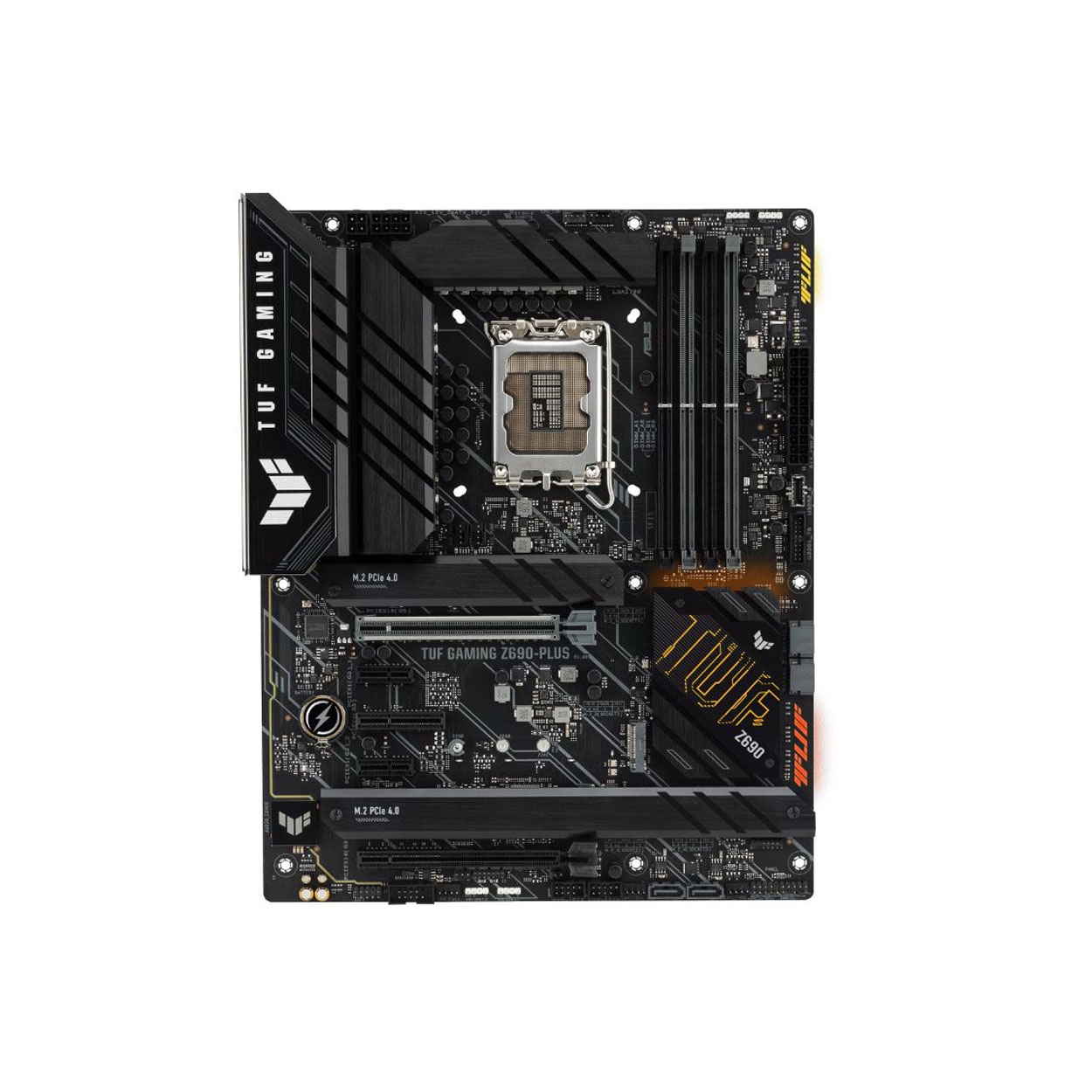

Asus TUF GAMING Z690-PLUS Z690 DDR5 M.2 DP/HDMI PCI 5.0 1700p Anakart

Stok:

Üretici Kodu: 90MB1AV0-M0EAY0

Kategori: Intel Anakart

Kıyasla

Kategori	AMD Anakart
Üretici Kodu	TUF GAMING Z690-PLUS
İşlemci Soketi	Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list.
Soket Tipi	1700 Pin
Bellek Yuvası	4x DIMM
Bellek Desteği	4 x DIMM, Max. 192GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), a
DDR	DDR 5
Maksimum Bellek Desteği	192GB
Depolama Portları	Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode Intel® Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/22
Tümleşik Vga	Var
Tümleşik Ses	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capaci
Yonga Seti	Intel Z690 Chipset
Tümleşik Ağ	1 x Intel® 2.5Gb Ethernet TUF LANGuard

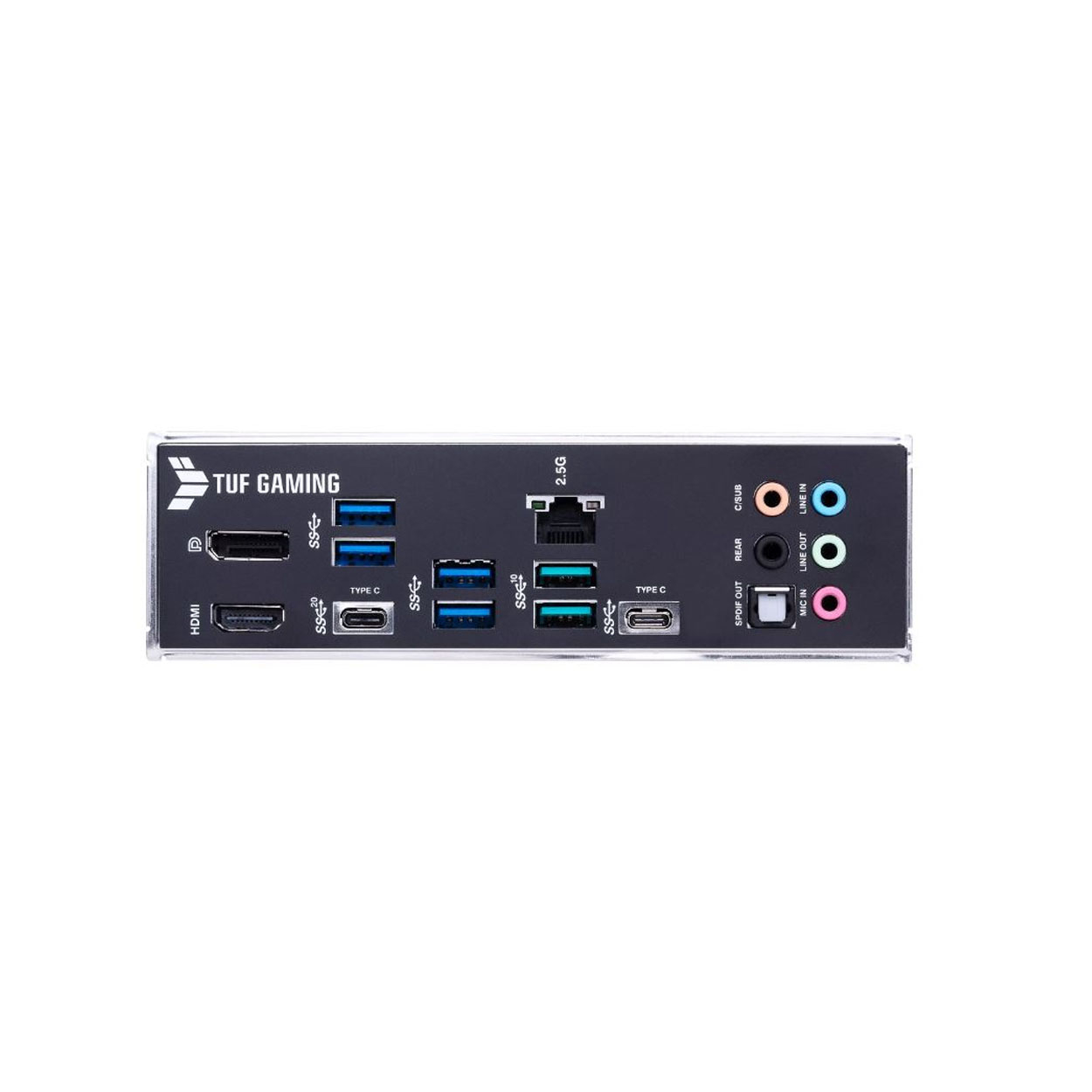

Arka Bağlantılar	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)
Genişleme Yuvası	Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel® Z690 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x4 slot 2 x PCIe 3.0 x1 slots Please check PCIe bifurcation table in support site. Supports Intel® Optane Memory H Series
Dahili Bağlantılar	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage relat
İşletim Sistemi Desteği	Windows® 11 64-bit, Windows® 10 64-bit
Form Yapısı	ATX
Boyutlar	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Model Link	https://www.asus.com/tr/motherboards-components/motherboards/all-series/tuf-gaming-z690-plus/techspec/


1	-	-	-	%3.75 13.144,37TL	-	%4.24 13.211,63TL	%3.00 13.042,74TL	-
2	%4.25 13.213,01TL	%6.16 13.481,95TL	%6.15 13.480,51TL	%6.11 13.474,77TL	%6.11 13.474,77TL	%6.11 13.474,77TL	-	%5.50 13.387,79TL
3	%5.50 13.387,79TL	%8.03 13.756,07TL	%8.02 13.754,58TL	%7.98 13.748,60TL	%7.98 13.748,60TL	%7.98 13.748,60TL	-	%7.15 13.625,70TL
4	-	%9.90 14.041,58TL	%9.89 14.040,02TL	-	%9.85 14.033,79TL	%9.85 14.033,79TL	-	%8.83 13.876,78TL
5	%8.00 13.751,59TL	%11.76 14.337,56TL	%11.76 14.337,56TL	%11.71 14.329,44TL	%11.71 14.329,44TL	-	-	%10.48 14.132,55TL
6	%9.25 13.941,00TL	%13.63 14.647,98TL	%13.63 14.647,98TL	%13.58 14.639,50TL	%13.58 14.639,50TL	%13.58 14.639,50TL	-	%12.19 14.407,77TL
8	%11.75 14.335,93TL	%17.37 15.310,98TL
9	%13.00 14.541,91TL	%19.24 15.665,50TL	%19.24 15.665,50TL	%19.19 15.655,81TL	%19.19 15.655,81TL	%19.19 15.655,81TL	%17.14 15.268,48TL
12	%16.75 15.196,95TL	%24.85 16.834,94TL	%24.84 16.832,70TL	%24.80 16.823,75TL	%24.80 16.823,75TL


1	-	-	%4.24 13.211,63TL	-	-	-	%3.30 13.083,21TL
2	%6.11 13.474,77TL	%5.75 13.423,30TL	%6.11 13.474,77TL	%6.11 13.474,77TL	%6.16 13.481,95TL	%6.15 13.480,51TL	%5.50 13.387,79TL
3	%7.98 13.748,60TL	%7.50 13.677,25TL	%7.98 13.748,60TL	%7.98 13.748,60TL	%8.03 13.756,07TL	%8.02 13.754,58TL	%7.15 13.625,70TL
4	%9.85 14.033,79TL	-	-	-	%9.90 14.041,58TL	%9.89 14.040,02TL	%8.83 13.876,78TL
5	%11.71 14.329,44TL	%11.00 14.215,12TL	-	-	%11.76 14.337,56TL	%11.76 14.337,56TL	%10.48 14.132,55TL
6	%13.58 14.639,50TL	%12.75 14.500,24TL	-	-	%13.63 14.647,98TL	%13.63 14.647,98TL	%12.19 14.407,77TL
7	-	-	-	-	-	-	-
8	-	-	-	-	-	%17.37 15.310,98TL	-
9	%19.19 15.655,81TL	-	-	-	-	%19.24 15.665,50TL	%17.14 15.268,48TL
10	-	-	-	-	-	-	-
11	-	-	-	-	-	-	-
12	-	-	-	-	-	%24.84 16.832,70TL	-
