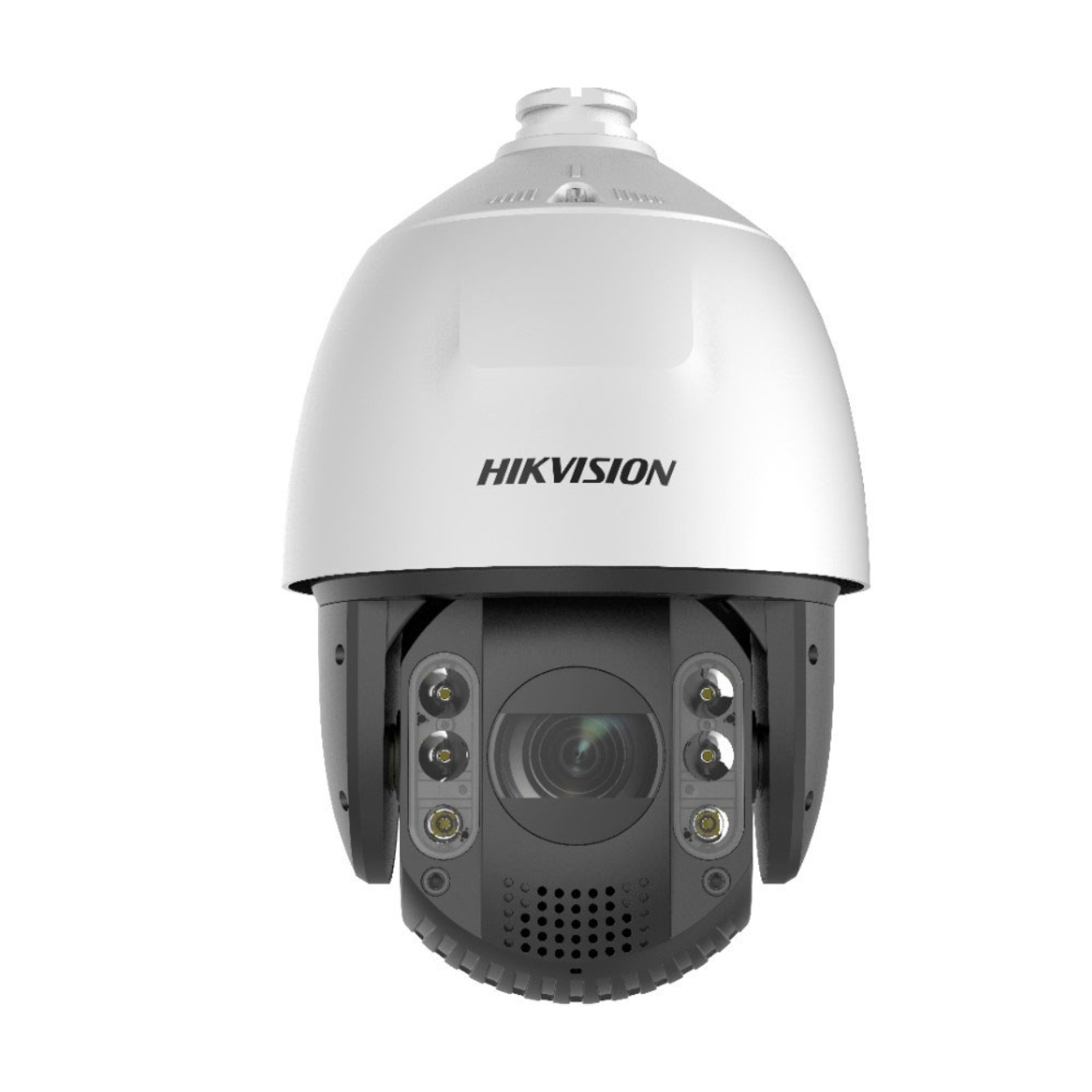

Hikvision DS-2DE7A432IW-AEB 4MP DarkFighter PTZ (H265+,32x 200Mt IR)
| Kategori | PTZ IP Kamera | |
| Kamera Tipi | PTZ | |
| Kamera Çözünürlüğü | 4MP | |
| Beyaz Işık | Var | |
| WDR | 120dB WDR | |
| Üretici Kodu | DS-2DE7A432IW-AEB | |
| Görüntü Sensörü | 1/1.8" Progressive Scan CMOS | |
| Max. Çözünürlük | 2560 × 1440 | |
| Lens | 5.9 mm to 188.8 mm | |
| Min. Aydınlatma | Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR | |
| Bakış Açısı |
Horizontal field of view: 50.8° to 2.6° (wide-tele), Vertical field of view: 29.4° to 1.5° (wide-tele), Diagonal field of view:57.4° to 3° (wide-tele) |
|
| Deklanşör Hızı | 1/1 s to 1/30000 s | |
| Video Sıkıştırma |
Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
|
| Ana Akış Maks. Kare hızı |
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
|
| Alt Akış Maks. Kare hızı |
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
|
| Görüntü Ayarı |
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|
| Görüntü Geliştirme | BLC, HLC, 3D DNR | |
| İlgi Bölgesi (ROI) | 8 fixed regions for each stream | |
| Alarm Tetikleyici | alarm triggering by specified target types (human and vehicle) | |
| Network Protokolü |
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
|
| Materyal | ADC12 | |
| Hafıza Kartı | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB | |
| Çalışma Koşulları | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) | |
| Güç Tüketimi Ve Akım |
24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater); Hi-PoE |
|
| Boyut ve Ağırlık |
Ø 220 mm × 363.3 mm (Ø 8.66" × 13.91") Approx. 5 kg (11.03 lb.) |
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|
