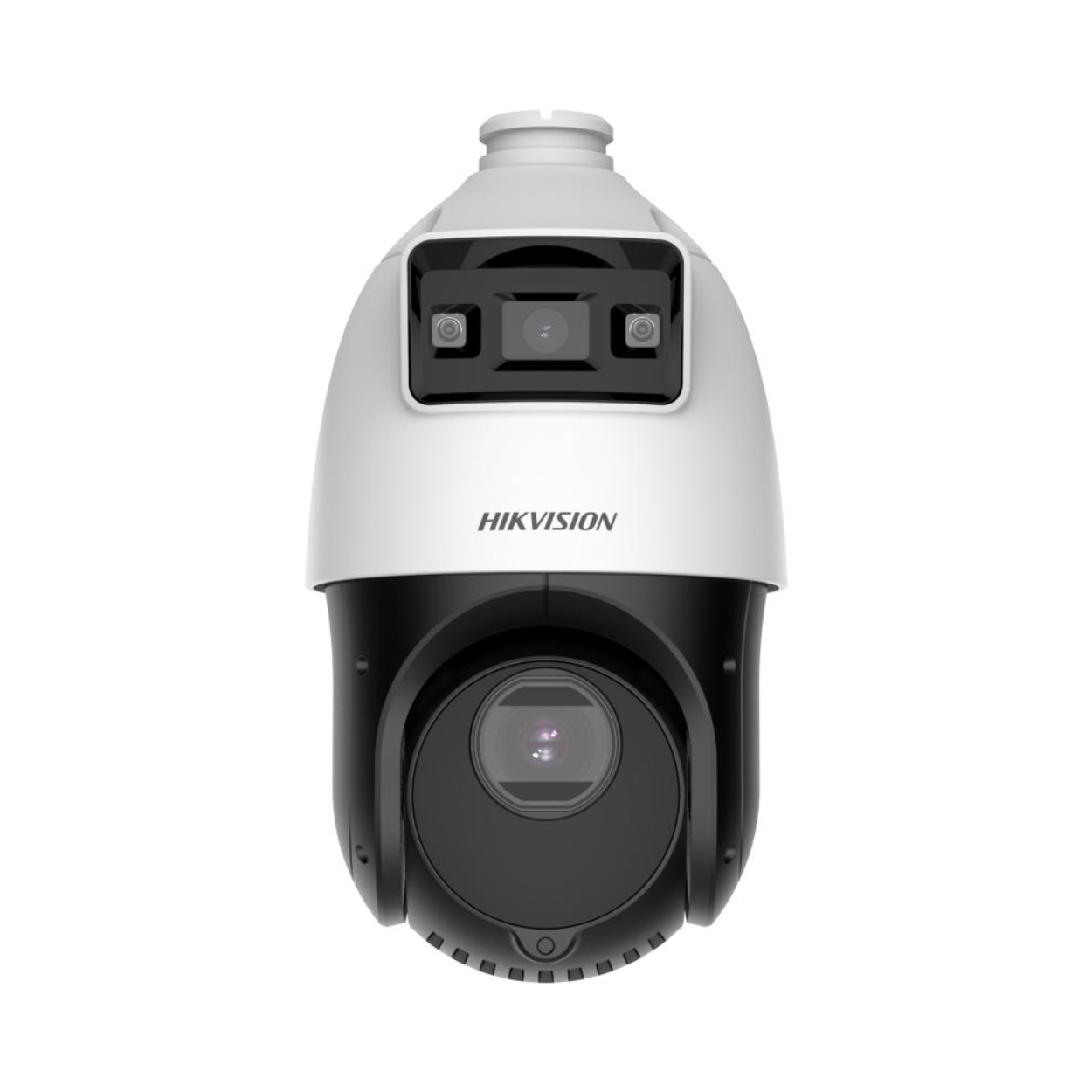

Hikvision DS-2SE4C425MWG-E/14(F0) TandemVu 4+4MP 25X ColorVu & IR Acusense PTZ
| Kategori | PTZ IP Kamera | |
| Kamera Tipi | Dome | |
| Kamera Çözünürlüğü | 4MP | |
| Lens Tipi | Optik | |
| Beyaz Işık | Var | |
| WDR | 120dB WDR | |
| Üretici Kodu | DS-2SE4C425MWG-E/14(F0) | |
| Görüntü Sensörü | [Bullet channel]: 1/3" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS | |
| Max. Çözünürlük | [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440 | |
| Lens | [Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical | |
| Min. Aydınlatma |
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
|
| Bakış Açısı |
[Bullet channel]: Horizontal field of view: 96.1°, Vertical field of view: 52.1°，Diagonal field of view: 113.3°; [PTZ channel]: Horizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: |
|
| Deklanşör Hızı | 1 s to 1/30,000 s | |
| Gece&Gündüz | ICR | |
| Video Sıkıştırma | H.265||H.264||MJPEG | |
| Ana Akış Maks. Kare hızı |
[Bullet channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × |
|
| Alt Akış Maks. Kare hızı |
[Bullet channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) [PTZ channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
|
| Görüntü Ayarı | sharpness, saturation, brightness, contrast | |
| Görüntü Geliştirme | BLC,HLC,3D DNR | |
| İlgi Bölgesi (ROI) | 8 fixed regions for each stream | |
| Alarm Tetikleyici | 1 alarm input, 1 alarm output | |
| Network Protokolü | IPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour||WebSocket||WebSockets | |
| Materyal | ADC12 | |
| Hafıza Kartı | Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB | |
| Çalışma Koşulları | -30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH | |
| Power Supply | 12VDC, PoE+ | |
| Güç Tüketimi Ve Akım | Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light | |
| Boyut ve Ağırlık |
Ø 166 mm × 375 mm (Ø 6.5" × 14.7") Approx. 2.4 kg (13.2 lb.) |
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|
